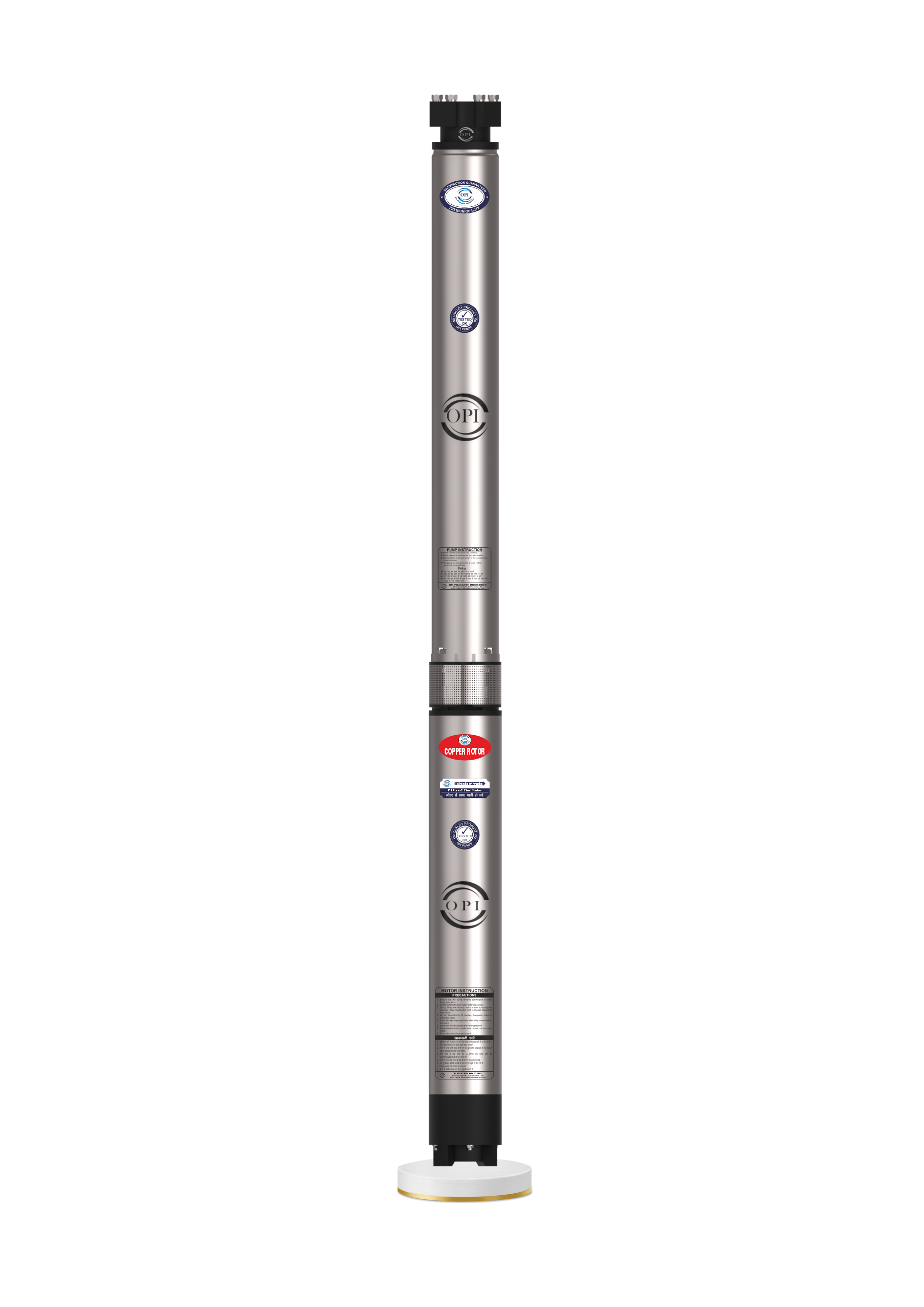

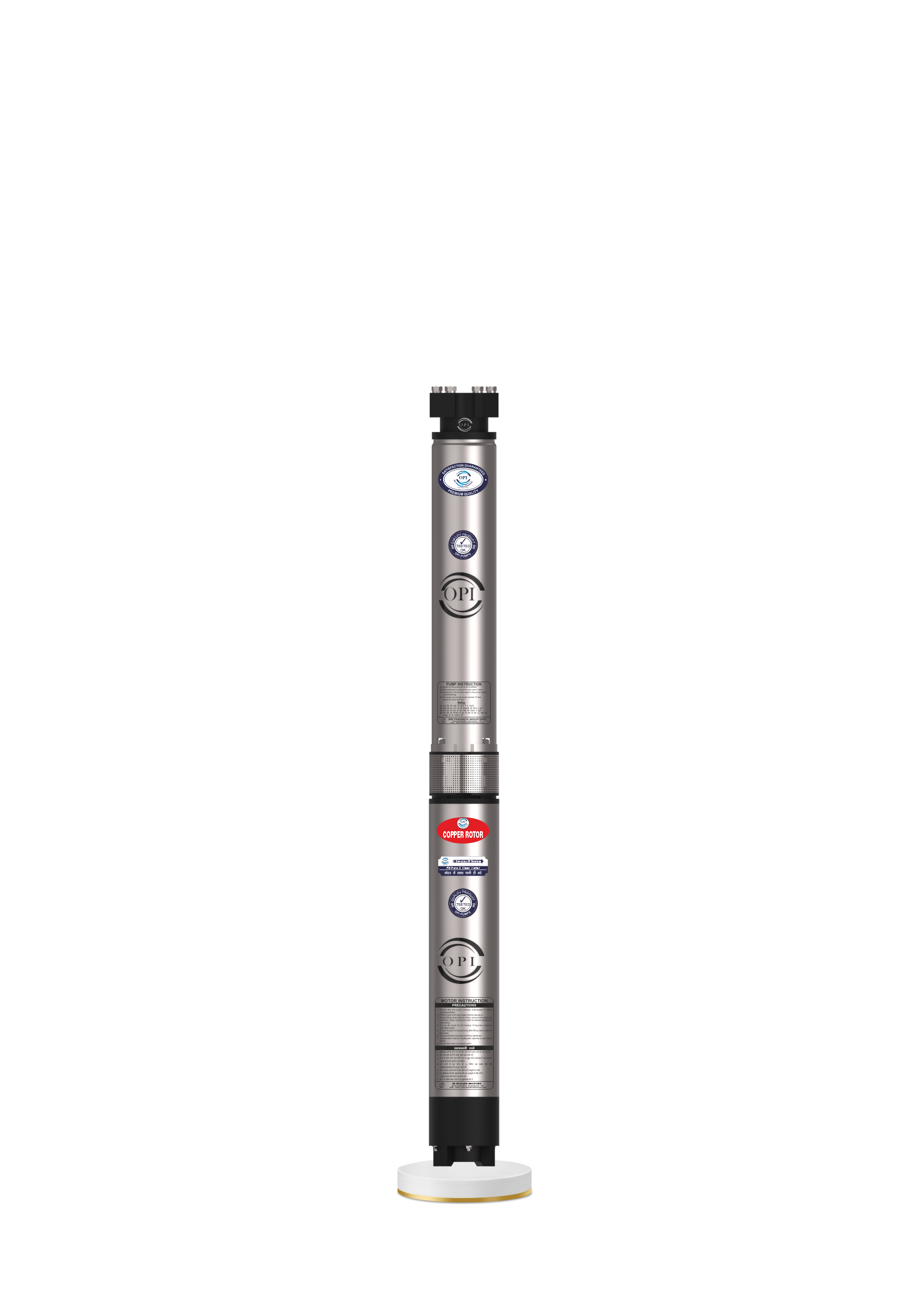

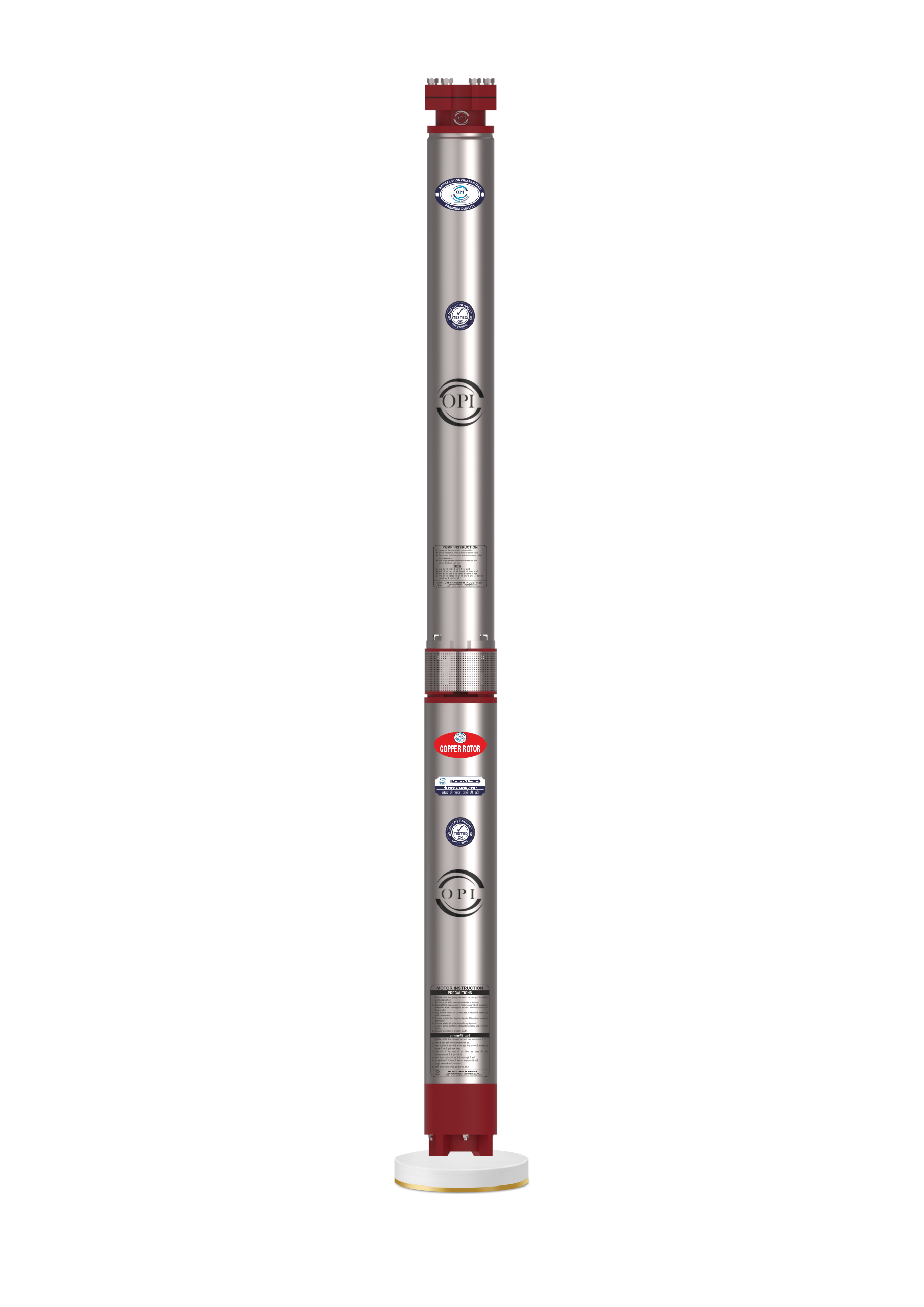

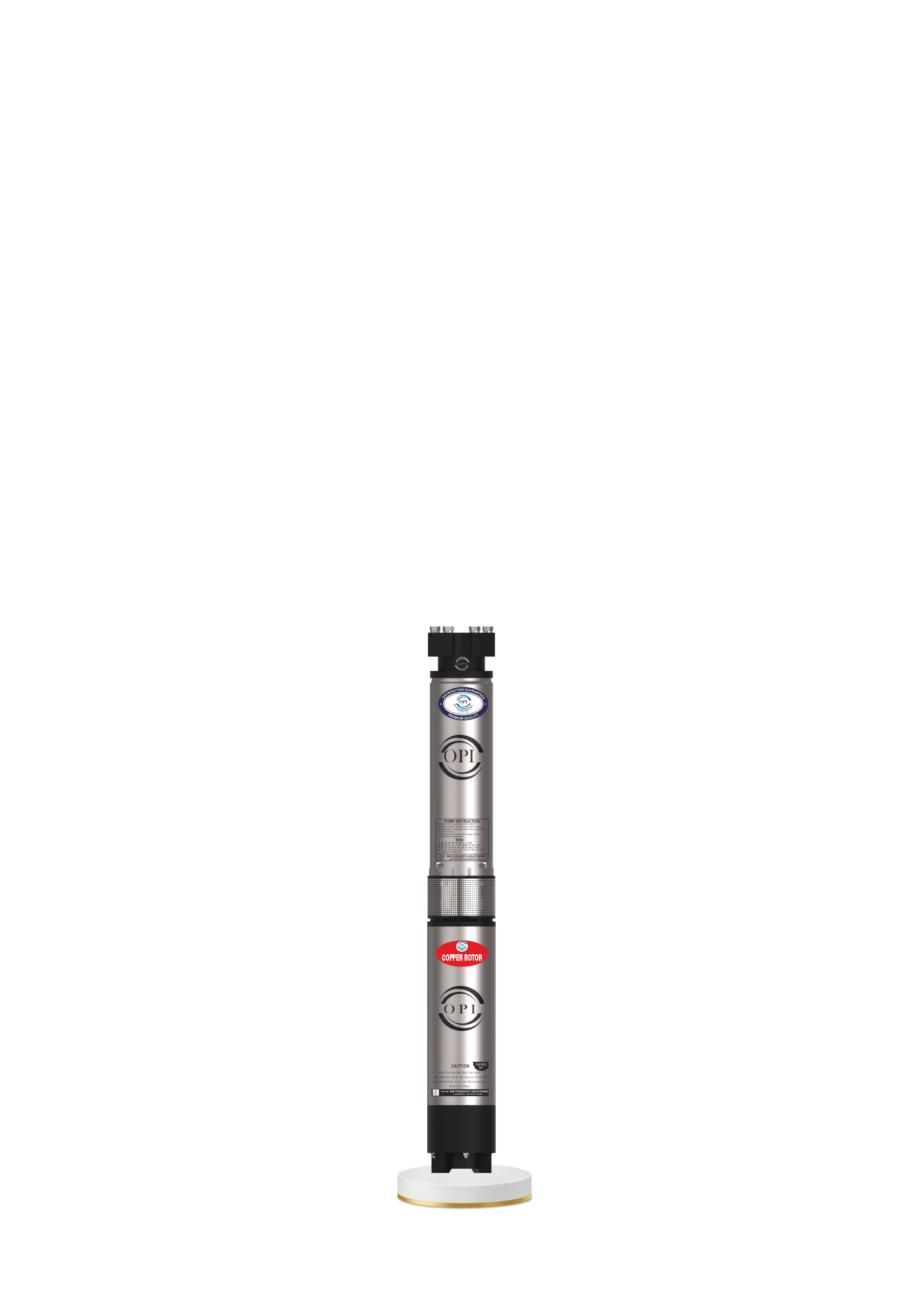

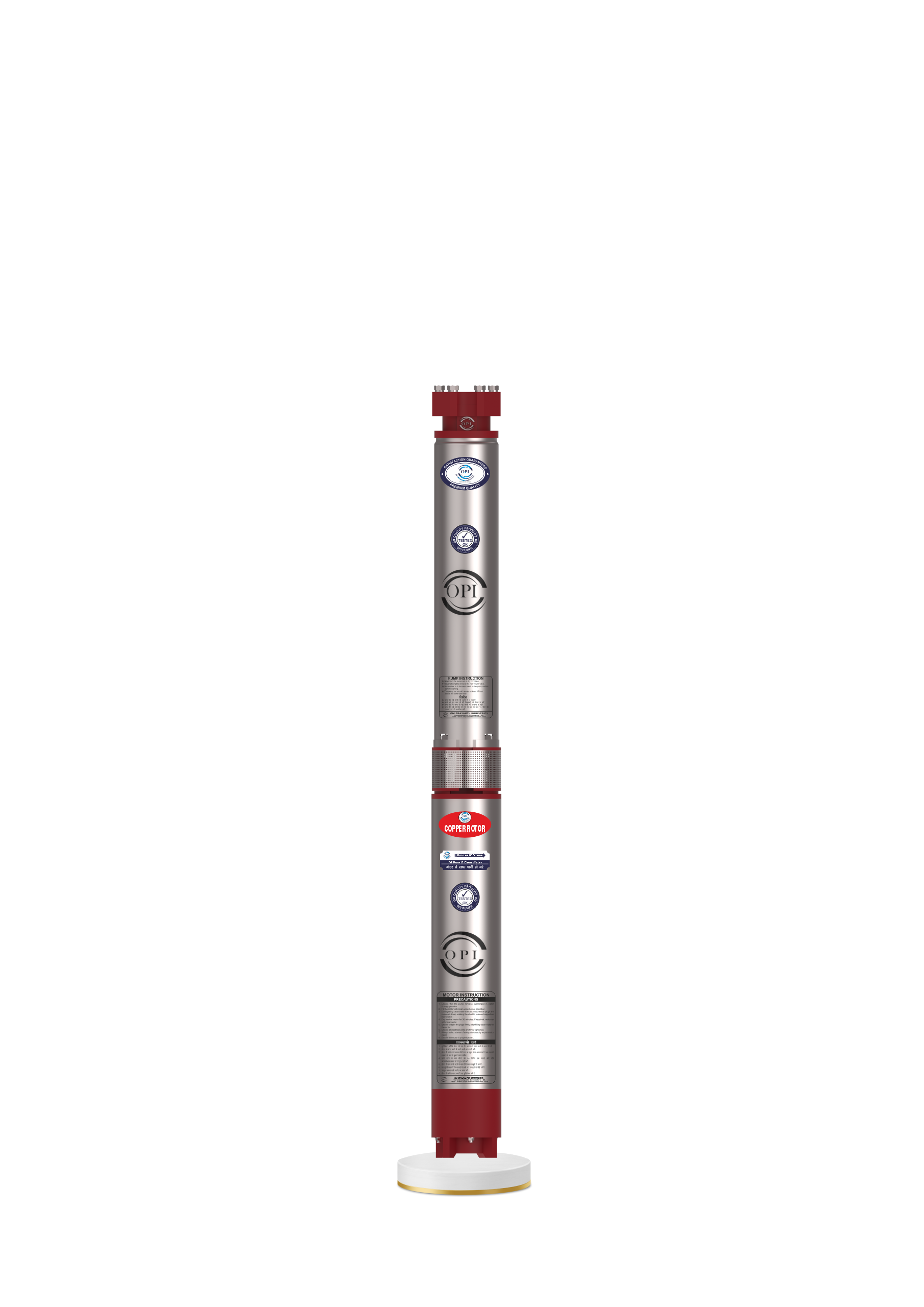

Explore Our Submersible V4

SPECIFICATION :

Nominal Diameter : 4”

Power Range : 0.37 kW to 3.7 kW (0.5 HP - 5.0 HP)

Supply Type : Single Phase (50Hz, AC Supply)
Three Phase (50Hz, AC Supply)

Voltage Range : 160 V - 240 V (Single Phase)
350 V - 420 V (Three Phase)

Speed : 2880 RPM

Head : Upto 420 Mtr

Flow : Upto 500 Lpm

Liquid / Max Temp : Clear Water / 33°C

Type of Duty : S1 (Continuous)

Insulation : Wet Type, Cat-B, 99.9% Pure Copper

Delivery Size : 1”, 1 ½”, 2”, 2 ½”, 3”

Max. Outer Diameter : 96 mm

Method of Starting : 1 PH - Capacitor Start Capacitor Run (CSCR)
3 PH - Direct Online (D.O.L)
