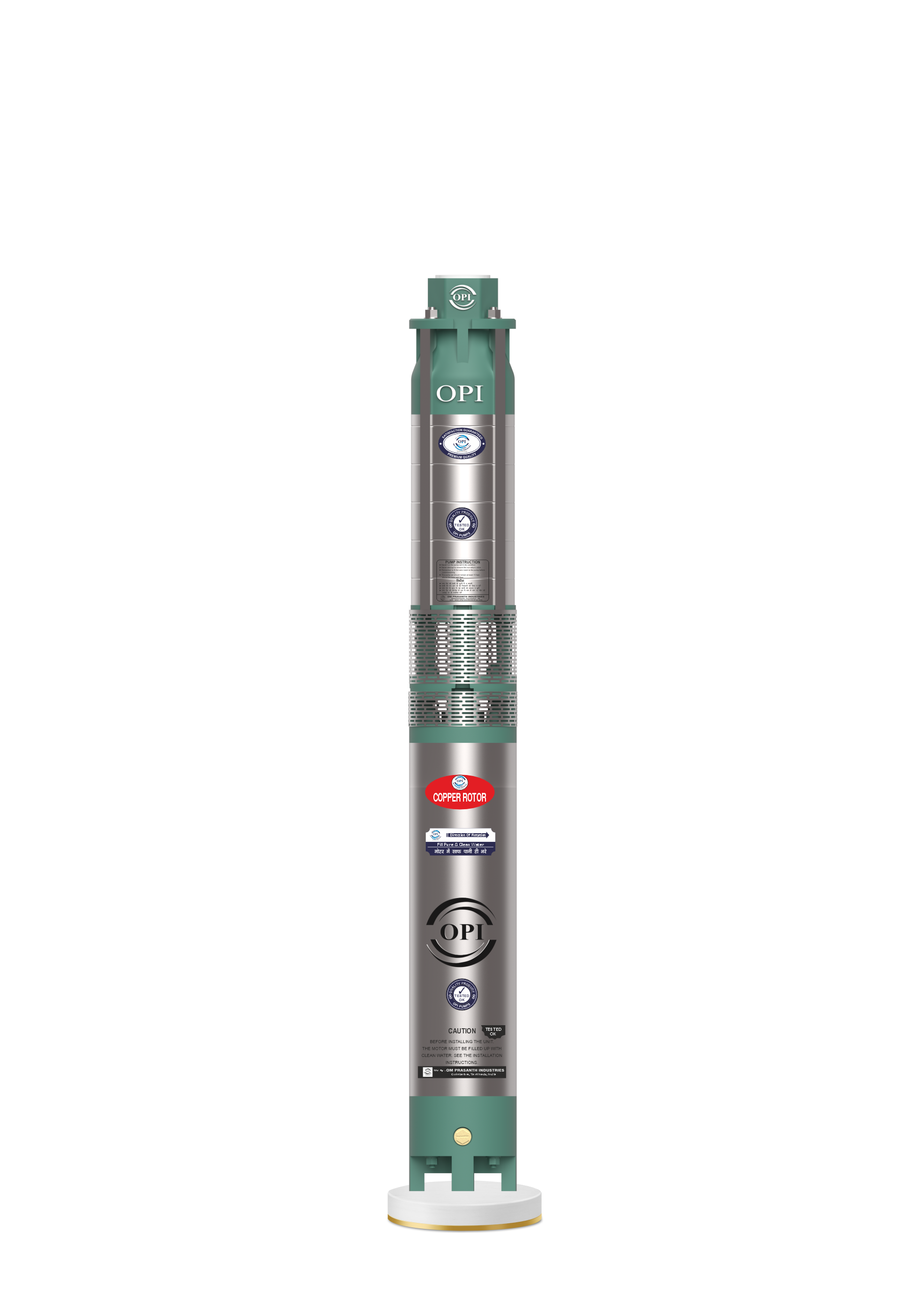

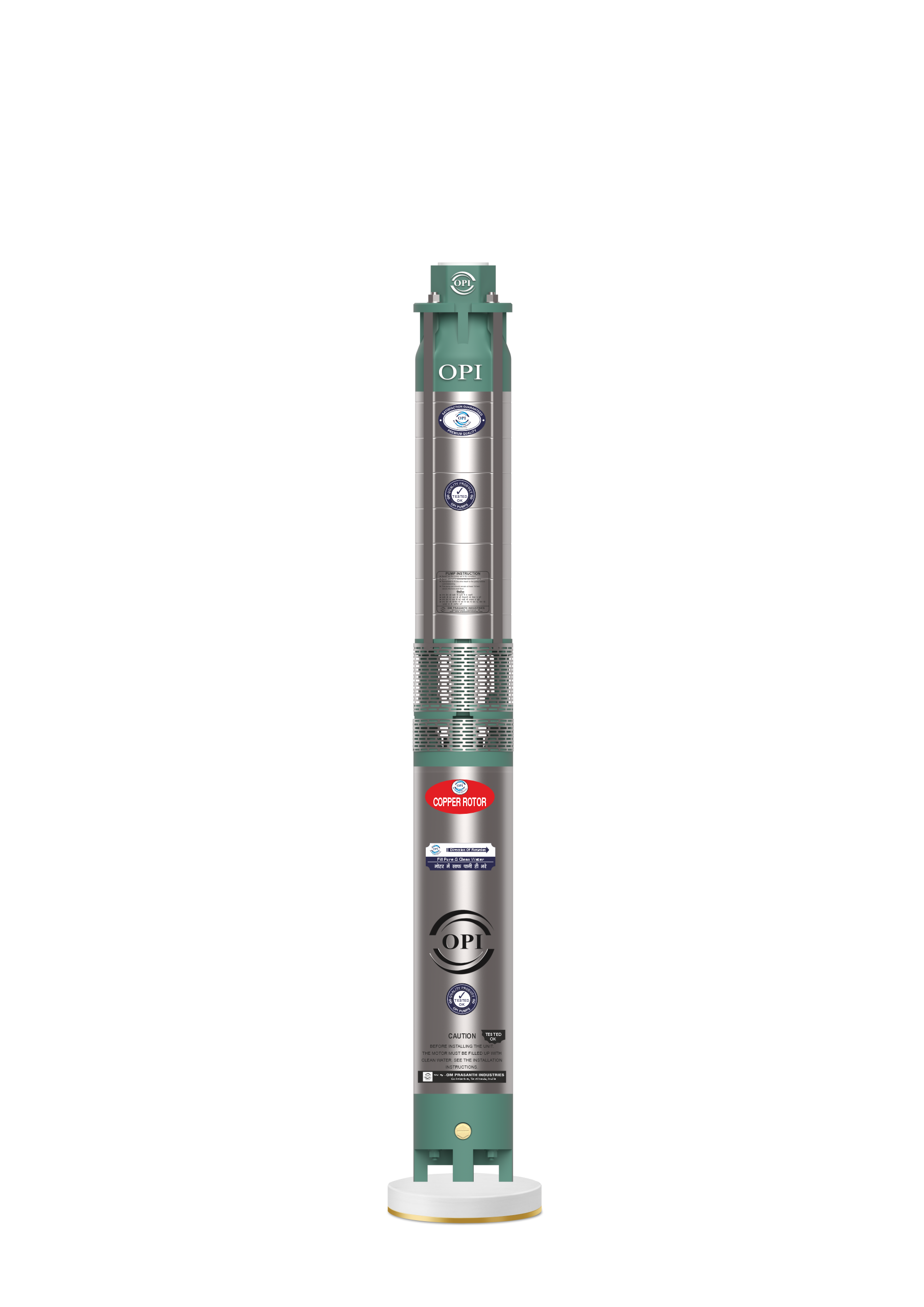

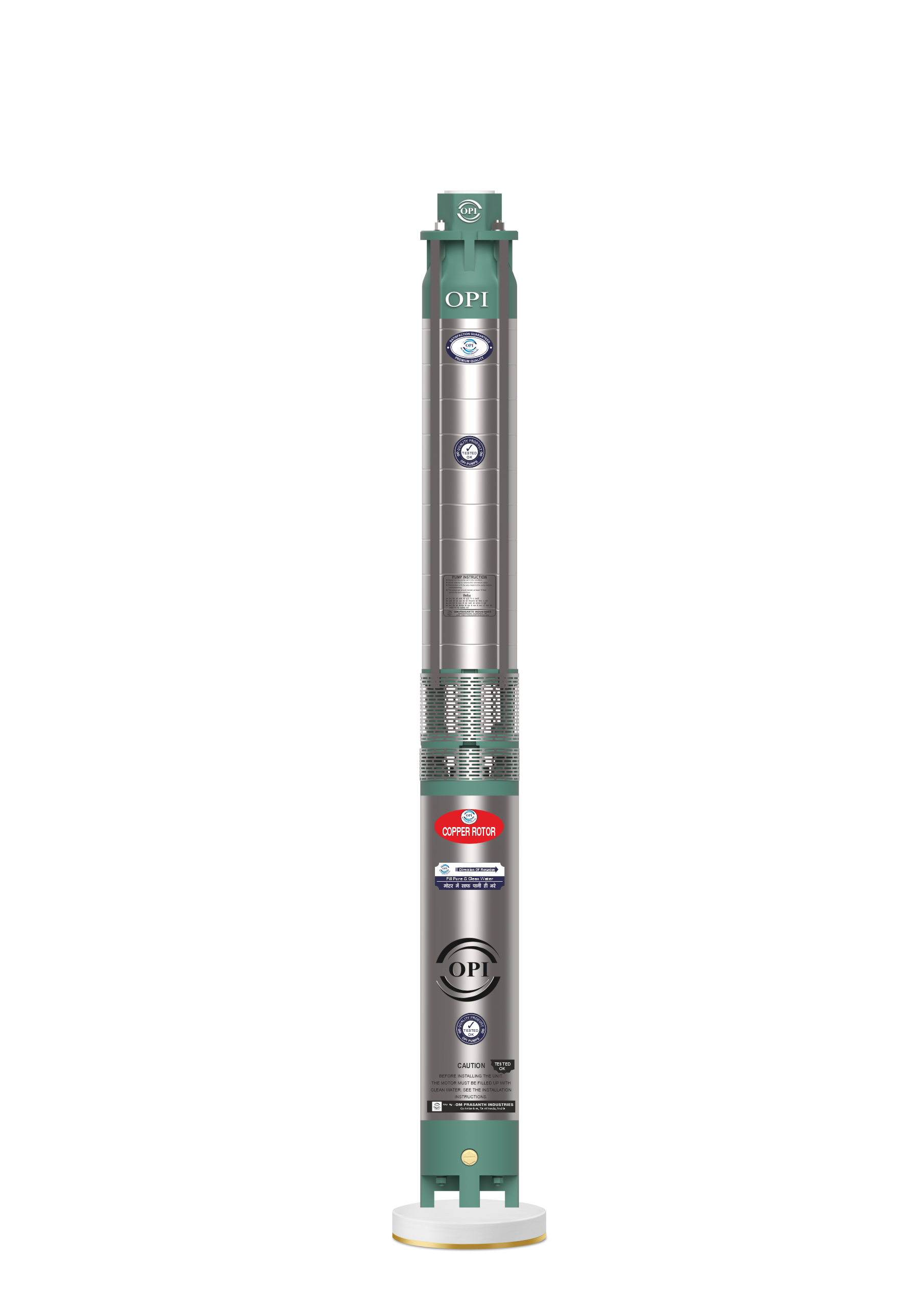

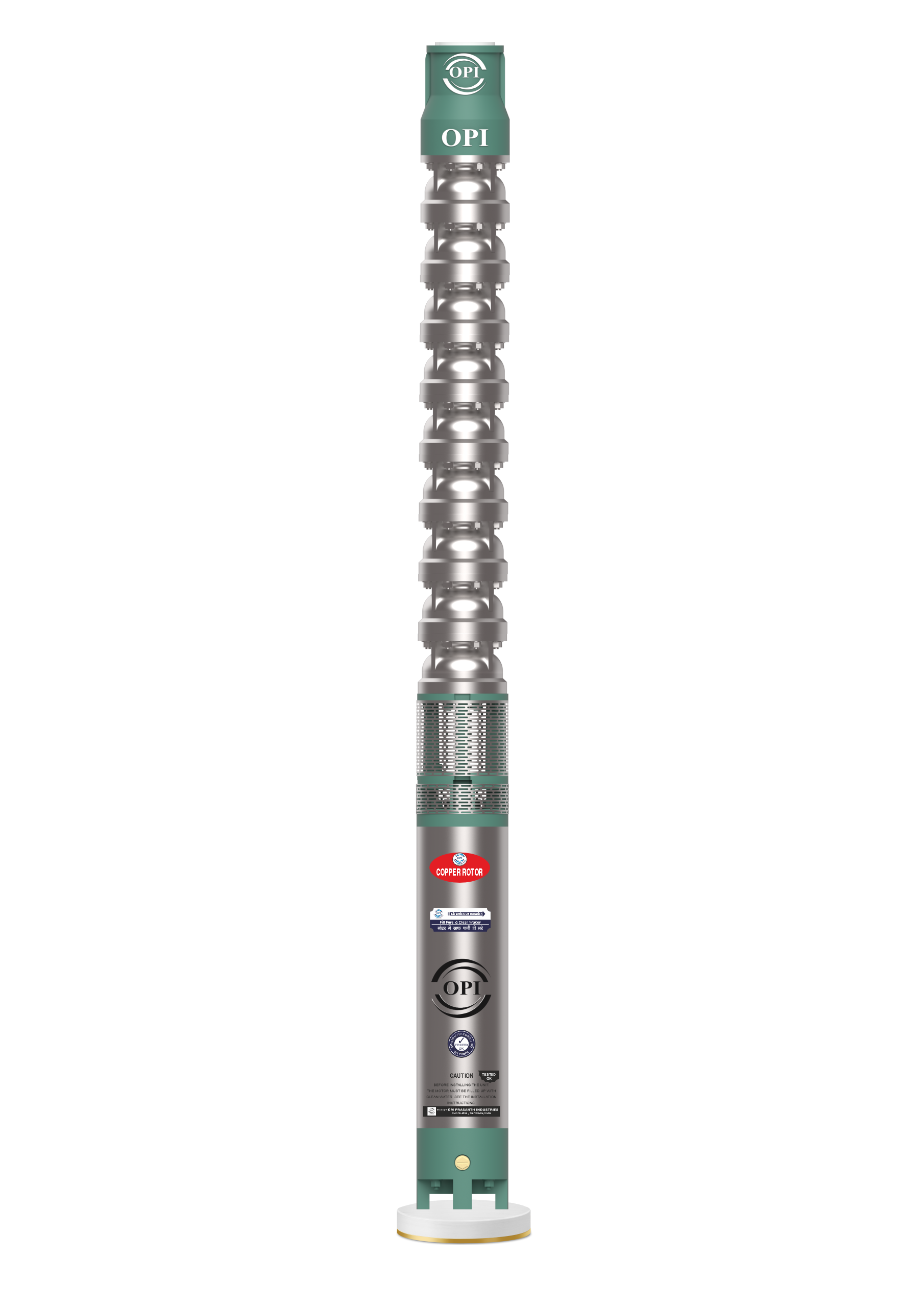

Explore Our Submersible V6 SS

SPECIFICATION :

Nominal Diameter : 6”

Power Range : 2.2 kW to 11.0 kW (3.0 HP - 15.0 HP)

Supply Type : Three Phase (50Hz, AC Supply)

Voltage Range : 350 V - 420 V (Three Phase)

Speed : 2880 RPM

Head : Upto 350 Mtr

Flow : Upto 1030 Lpm

Liquid / Max Temp : Clear Water / 33°C

Type of Duty : S1 (Continuous)

Insulation : Wet Type, Cat-B, 99.9% Pure Copper

Delivery Size : 2”, 2 ½”, 3”

Max. Outer Diameter : 147 mm

Method of Starting : 3 PH - Direct Online (D.O.L)
3 PH - Star Delta Starter
